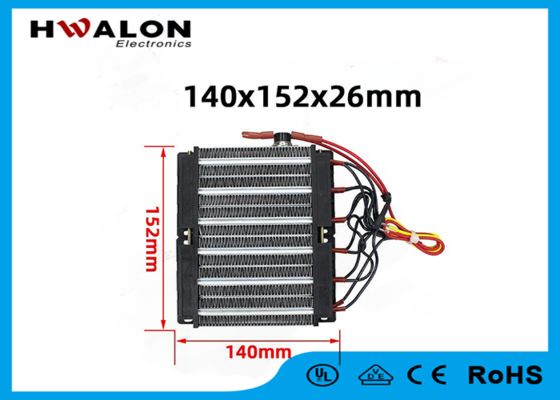

High Quality Insulated PTC Ceramic air Heater Heating element 140x152x26mm 1500W 110VAC/DC air Conditioner Heating element
Product Description:
PTC Heater Heating Element
1. Rated Voltage: 110V
2. Rated Power: 1500W (R=24℃,3.3m/s wind flow velocity)
3. Dimension: 140*152*26mm
4. Dimension of Fin:96*102mm
5. Dimension of Mounting hole:120*93mm
6. Remarks:with 150 degrees normally closed thermostat protector
Instruction manual:
1, The power line does not distinguish between positive and negative, you can freely link power 220V.
2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, Can be placed under a wet environment, but can not be placed in water.
4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6, Both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
9, Life: about: 3--5 years.
Packing & Delivery:
Packing Details : Packing, 50pcs/carton
Delivery Details : 1-5 days after order
Application:
|
|
